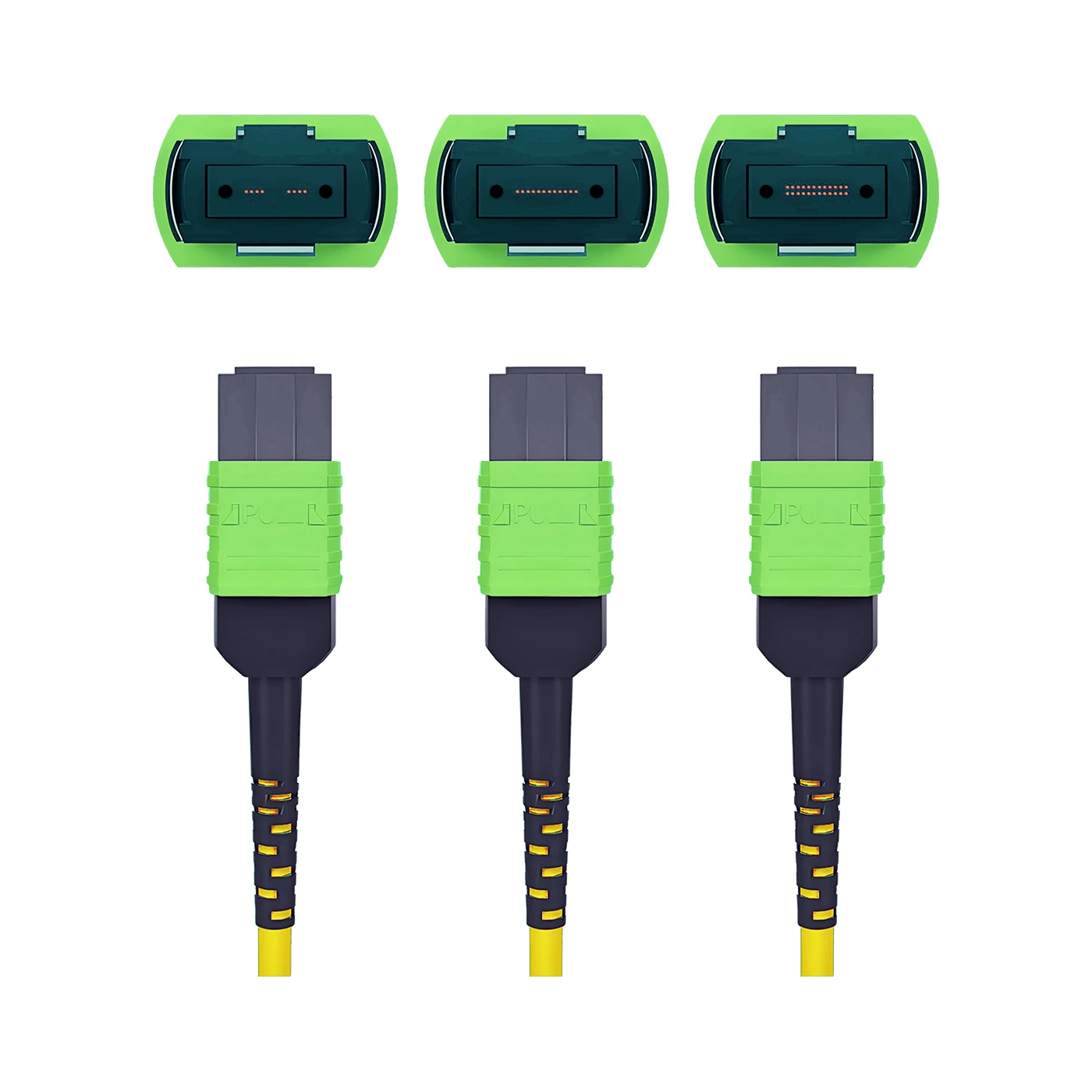

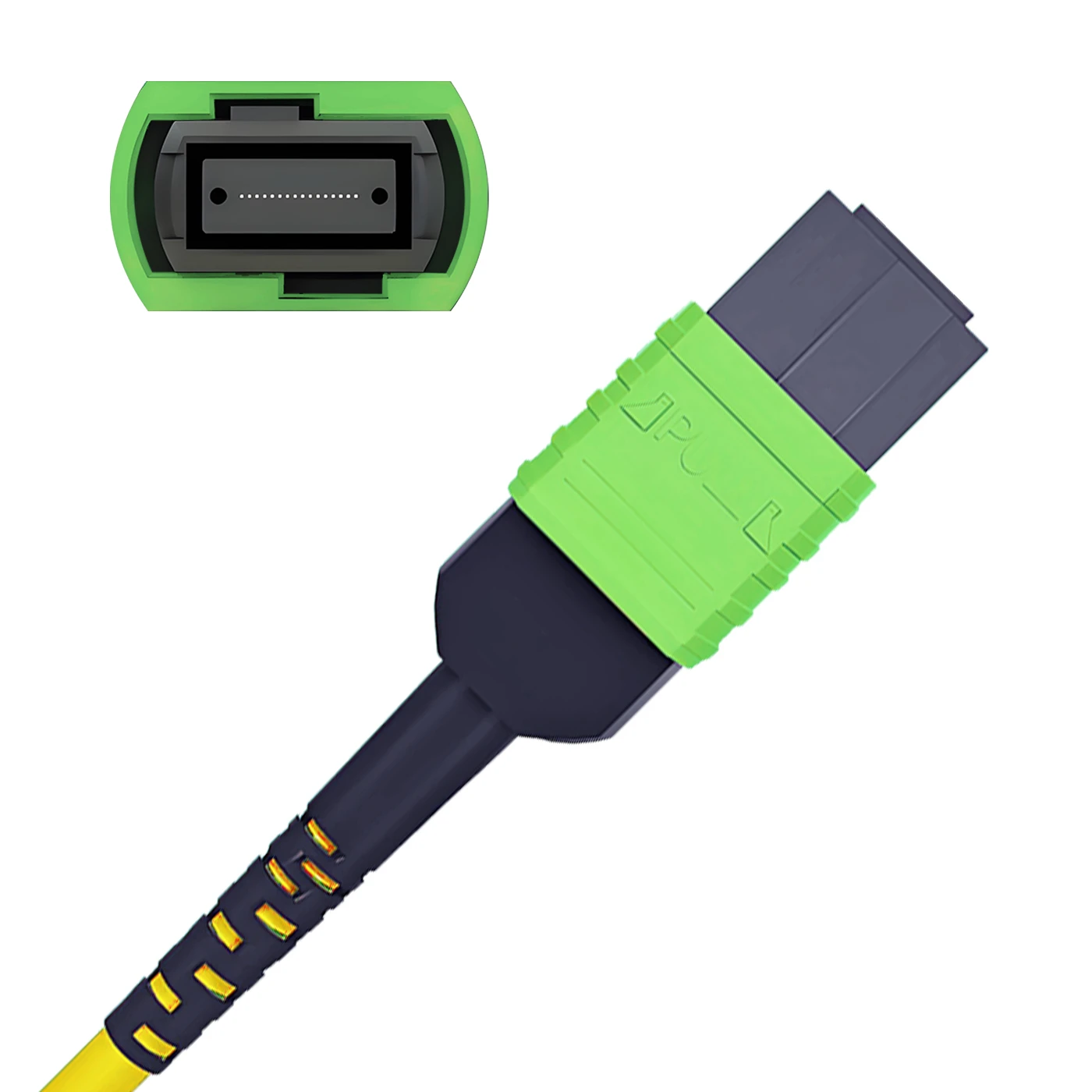

MTP Jumper Cable

MTP® jumpers enable seamless migration to higher data rates in data centers when used in combination with our trunk cables. They are primarily utilized for patching connections within equipment cabinets. MTP® cables, offering a cost-effective alternative to complex field termination, are specifically designed for high-density fiber patching in environments where space efficiency and easier cable management are essential.

They are ideal for 8-fiber parallel single-mode optical transceiver applications, including 40G QSFP+ PLR4, 100G QSFP28 PSM4, 400G OSFP DR4/XDR4, and 400G QSFP-DD DR4/XDR4 optical links.

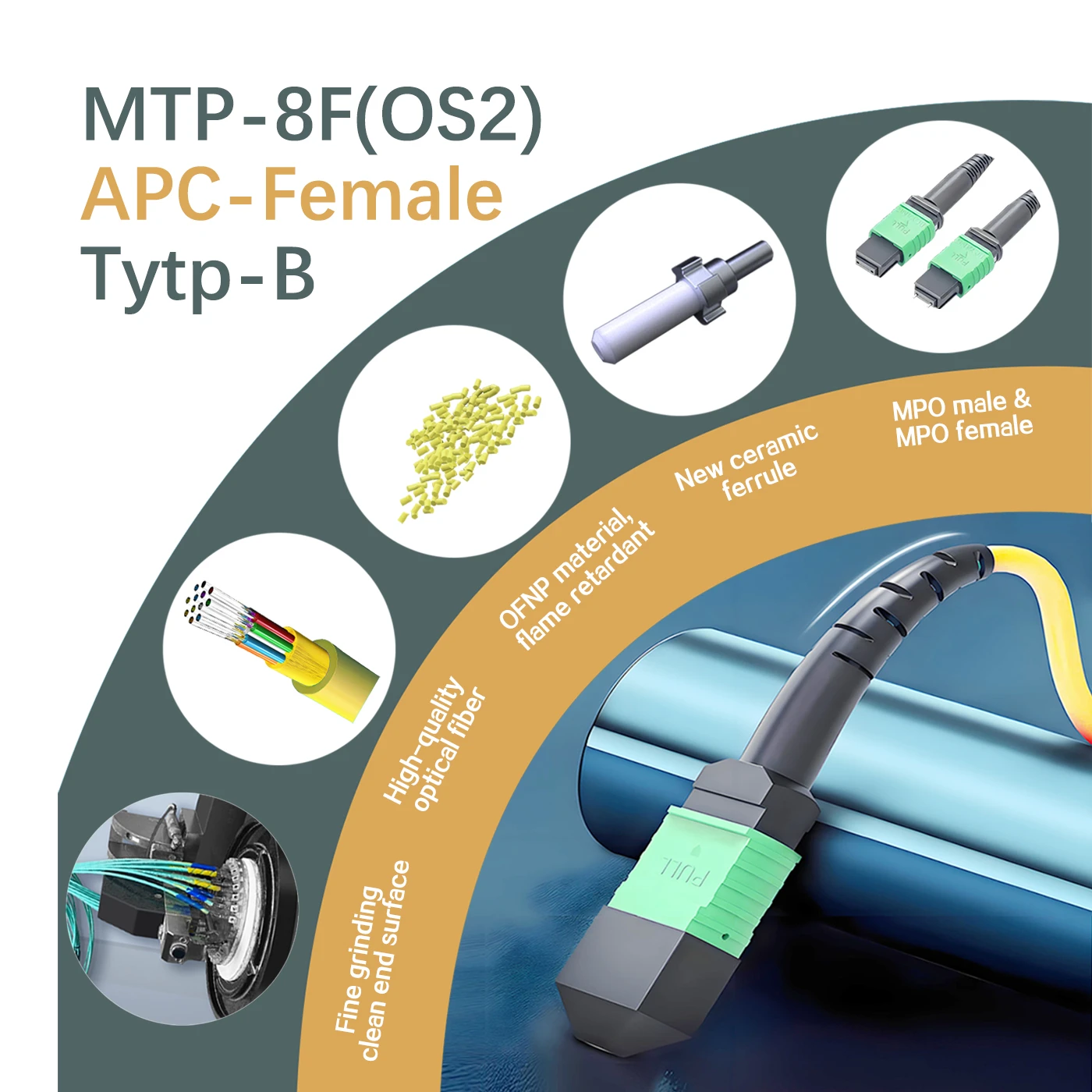

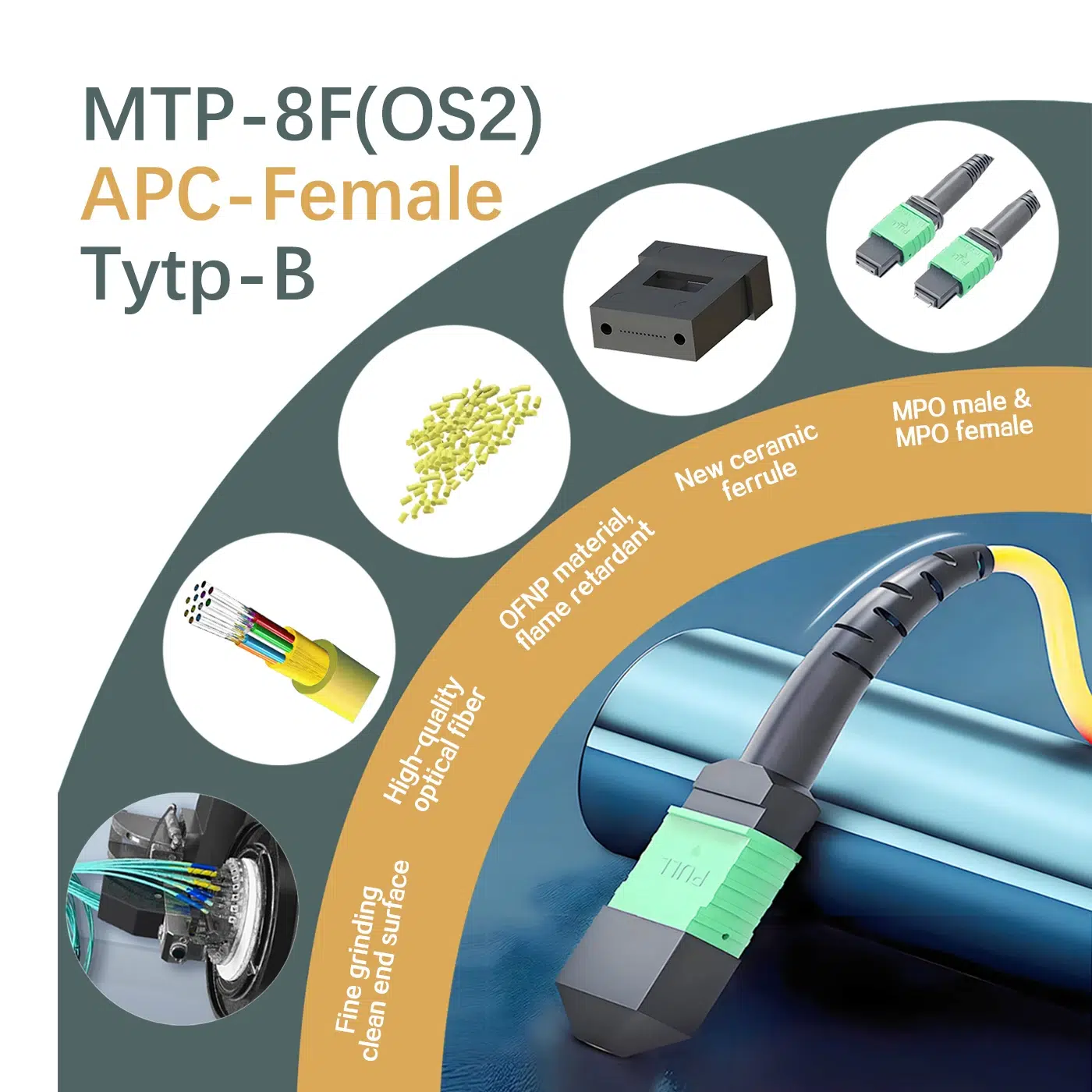

MTP Jumper Cable Advantage Specifications

Connector A：US Conec MTP® Elite Female (Pinless)
Connector B：US Conec MTP® Elite Female (Pinless)
Polish Type：APC to APC
Fiber Mode：OS2 9/125μm（G657A1）
Wavelength：1310/1550nm
Fiber Count：8 Fibers
Polarity：Type B
Cable Outside Diameter (OD)：3.0mm
Cable Jacket：Plenum (OFNP)
Min. Bend Radius (Optical Fiber)：10mm
Min. Bend Radius (Fiber Cable)：10/5D (Dynamic/Static)
Connector Durability：500 times
Tensile Strength：80/240N (Long/Short Term)
Insertion Loss：0.35dB Max
Return Loss：≥60dB
Attenuation at 1310nm：≤0.32dB/km
Attenuation at 1550nm：≤0.18dB/km
Operating Temperature：-10 to 60°C (14 to 140℉)
Storage Temperature：-10 to 70°C (14 to 158℉)
*MTP is a registered trademark of US Conec Ltd.

MTP Jumper Cable Polarity

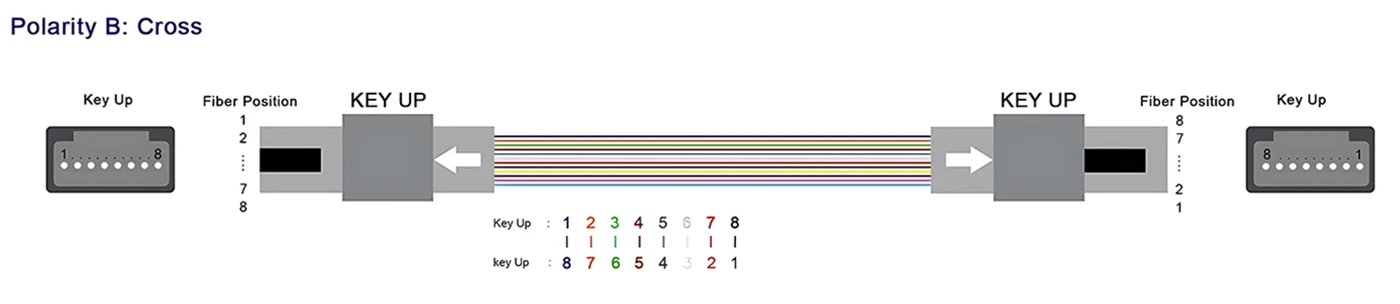

The MTP-8F Type B connector is a high-performance multi-fiber optical connector designed for 8-fiber parallel transmission systems, such as 40G and 100G Ethernet. It uses a key-up to key-up configuration and a reversed polarity to ensure proper alignment between transmit (Tx) and receive (Rx) channels.

MTP Jumper Cable Key Features:

Connector Type：MTP® (8-fiber version of MPO)
Fiber Count：8 fibers arranged in a single row
Polarity Type：Type B / cross (reversed or flipped)
Connector Orientation：Key-up to key-up
Application：40GBASE-SR4, 100GBASE-SR4, QSFP+ and QSFP28 direct connections

MTP Jumper Cable Advantage

• 100% use low-loss connectors
• Each MPO patch cord is fully tested for insertion loss & return loss, 100% tested, and batch goods are not sloppy
• Each line guarantees 3D geometric dimensions and end face integrity, imported equipment measures 3D, and dust-free workshops ensure cleanliness
• Affordable price, quality assurance, source manufacturers take both quality and price into consideration
• All materials have passed REACH/ROHS environmental protection requirements and are of export quality
• Adequate inventory, complete materials, and efficient production
• Customization of special specification MPO patch cords, fast delivery

MTP Jumper Cable 400G-400G direct connection mode

When the 400G QSFP-DD DR4 optical modules at both ends of the machine room can be connected through MPO/MTP-8 single-mode fiber jumpers to achieve 400G transmission.

MTP jumper cable single-mode connection

MTP jumper cable SPIN-LEAF connection method

MTP jumper cable Application

High-speed interconnection in data centers

It is used for direct connection of 40G/100G optical modules, supports 400G high-speed transmission, and can improve wiring density and transmission efficiency. For example, 400G QSFP-DD DR4 optical modules can be directly connected through MPO/MTP-8 single-mode fiber jumpers. ‌

High-density wiring scenarios

In the backbone wiring of data centers, MTP/MPO trunk fiber jumpers are used in conjunction with adapter modules to achieve interconnection and cross-connection between devices, saving 45% of wiring space. Branch jumpers are used to connect devices with different rates (such as 10G and 40/100G devices). ‌

100G/400G transmission expansion

Supports branch connection of 100G QSFP28 optical modules to 4 25G SFP28 optical modules, or interconnection of 100G CFP optical modules to another CFP. ‌

Fiber-to-Building Applications

It is used for fiber-to-the-building (FTTB) wiring to meet the needs of high-density fiber access.

MTP jumper cable Test Series

MTP Jumper Cable Polarity Test Process

‌End face cleaning: Use special equipment to remove end face contaminants to avoid affecting the test accuracy. ‌
Morphology detection: Analyze the end face microstructure through 3D imaging technology to detect surface roughness, scratches and other defects. ‌
Insertion loss test: Measure the contact loss between the fiber end face and the connector ferrule to evaluate the signal transmission quality. ‌
Polarity verification: Confirm the correspondence between the number of fiber cores and the connector guide hole to prevent communication failure caused by wrong connection. ‌

MTP Jumper Cable Test Key Indicators

Cleaning efficiency: It must reach more than 98% to ensure that there are no residual stains on the end face. ‌
‌Detection accuracy: The resolution of 3D morphology detection must be less than 1.5μ, and the insertion loss error must be controlled within 0.3dB. ‌
Test time: It takes about 10 seconds to detect a single fiber core of a 12-core MPO jumper, and the overall test takes about 2 minutes.

MTP jumper cable Test Common Problems

Pollution sensitivity: Tiny particles on the end face will cause increased loss, and non-contact cleaning methods are required to protect the end face. ‌ ‌
