fiber optic panels-Main functions and effects of fiber optic adapter panel

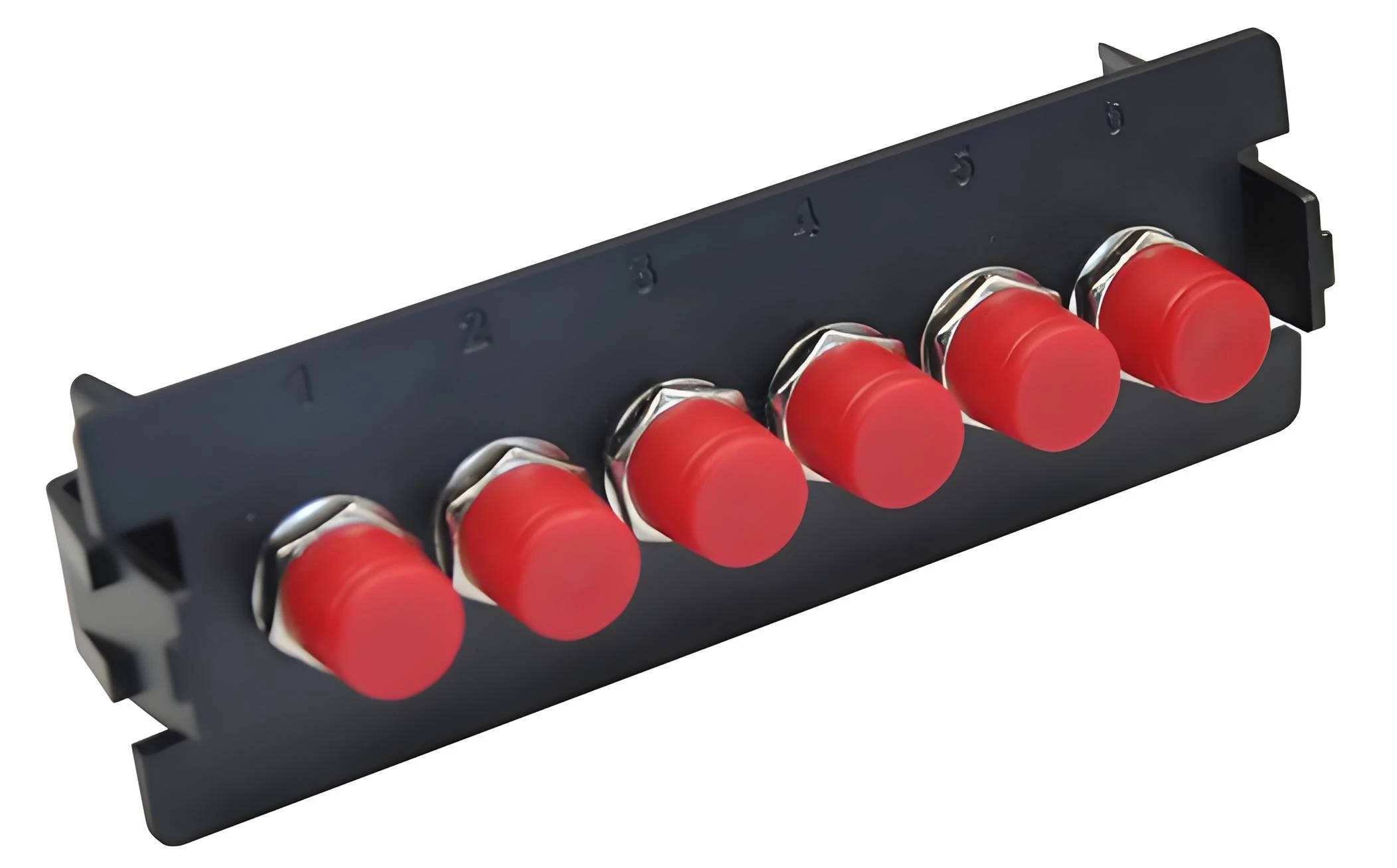

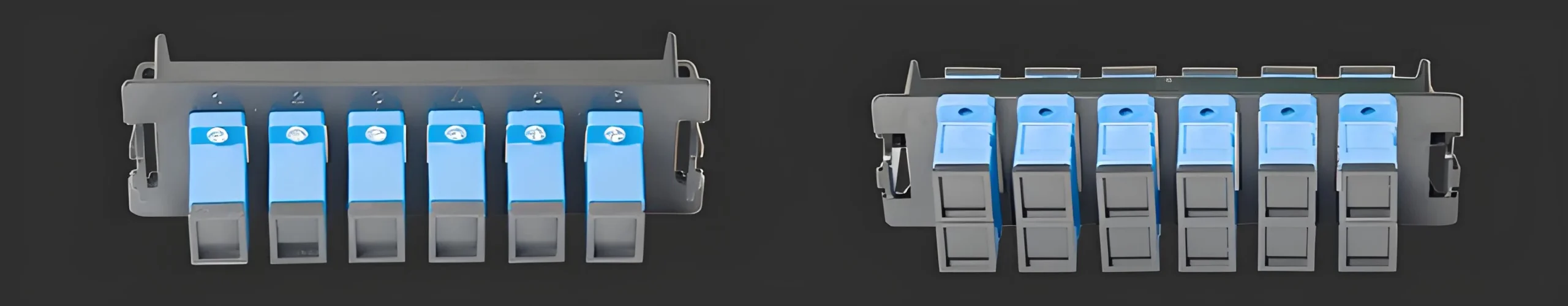

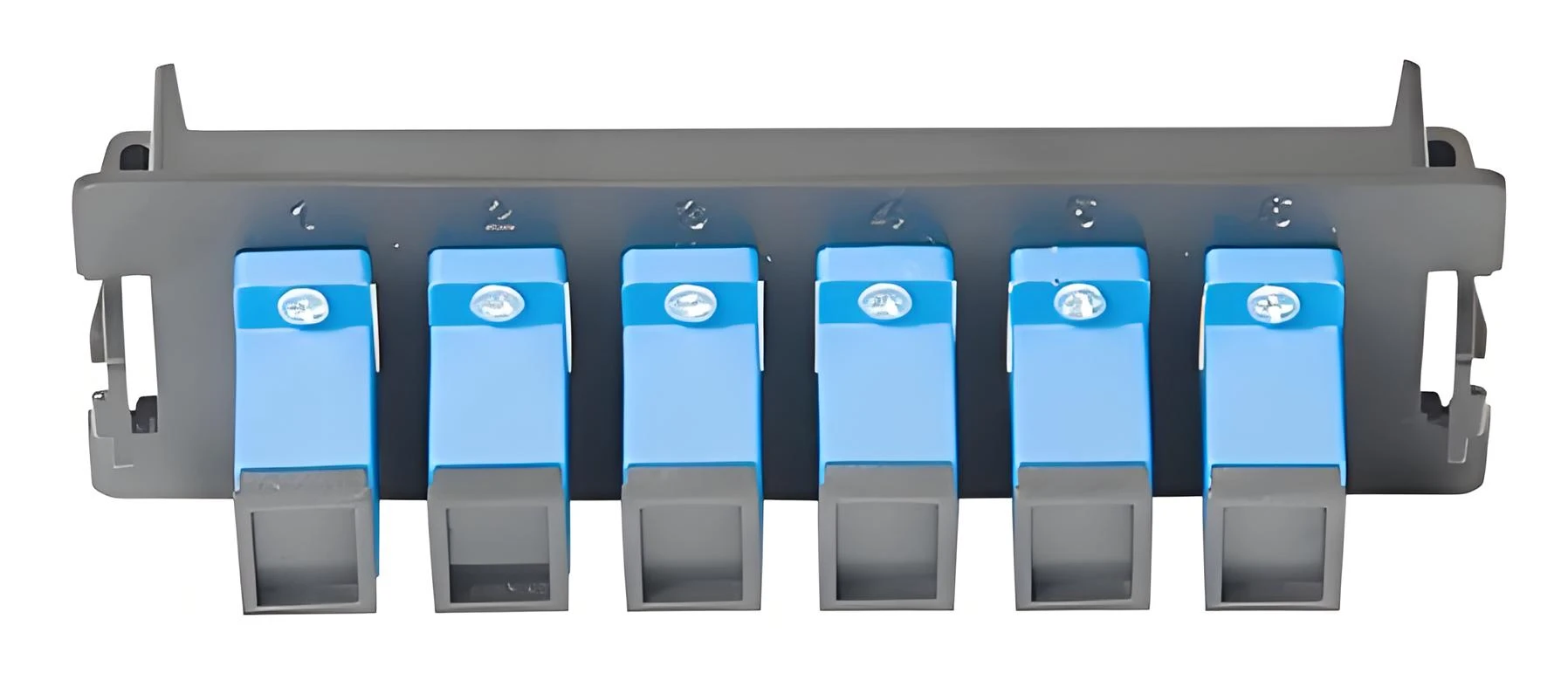

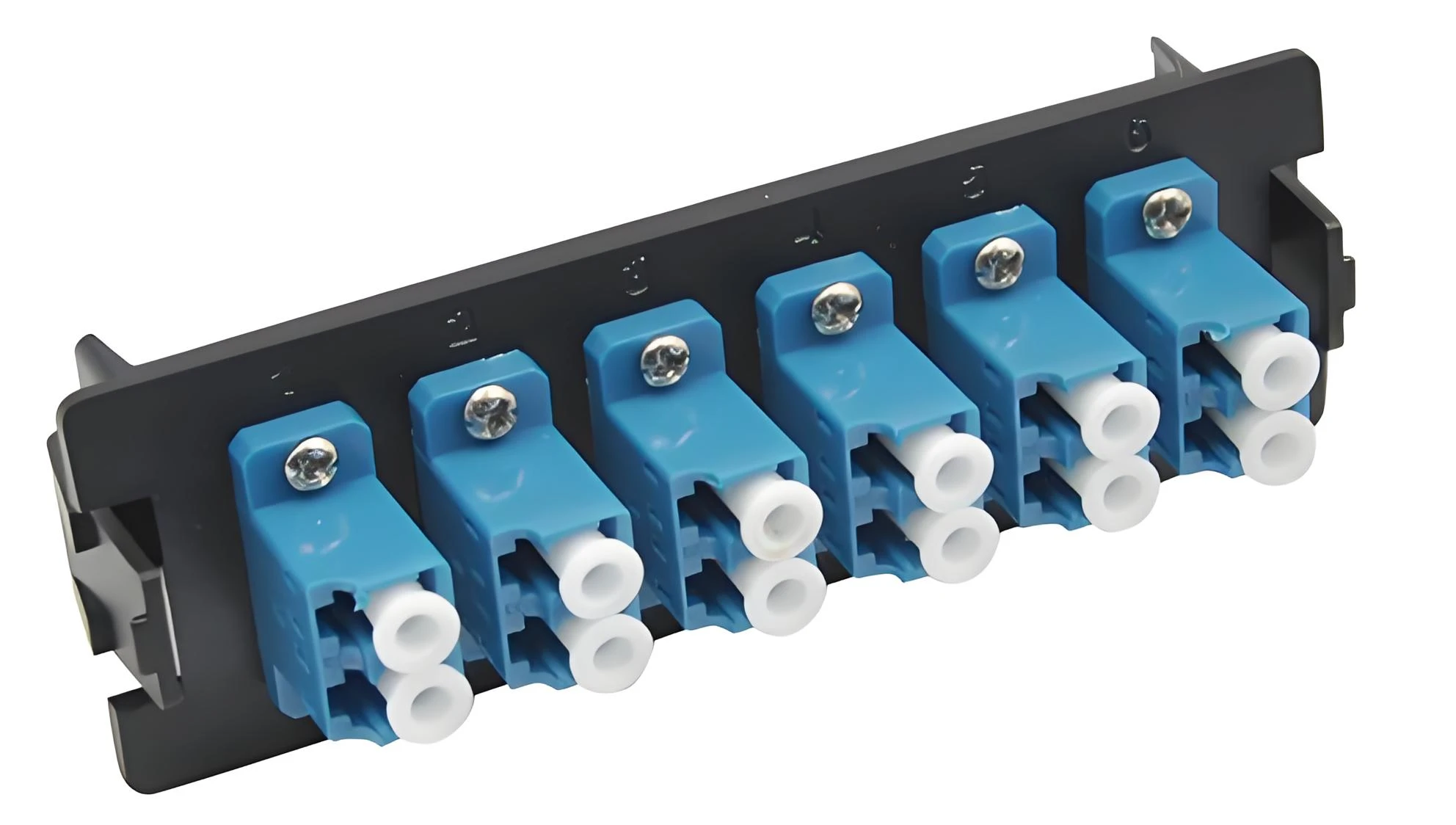

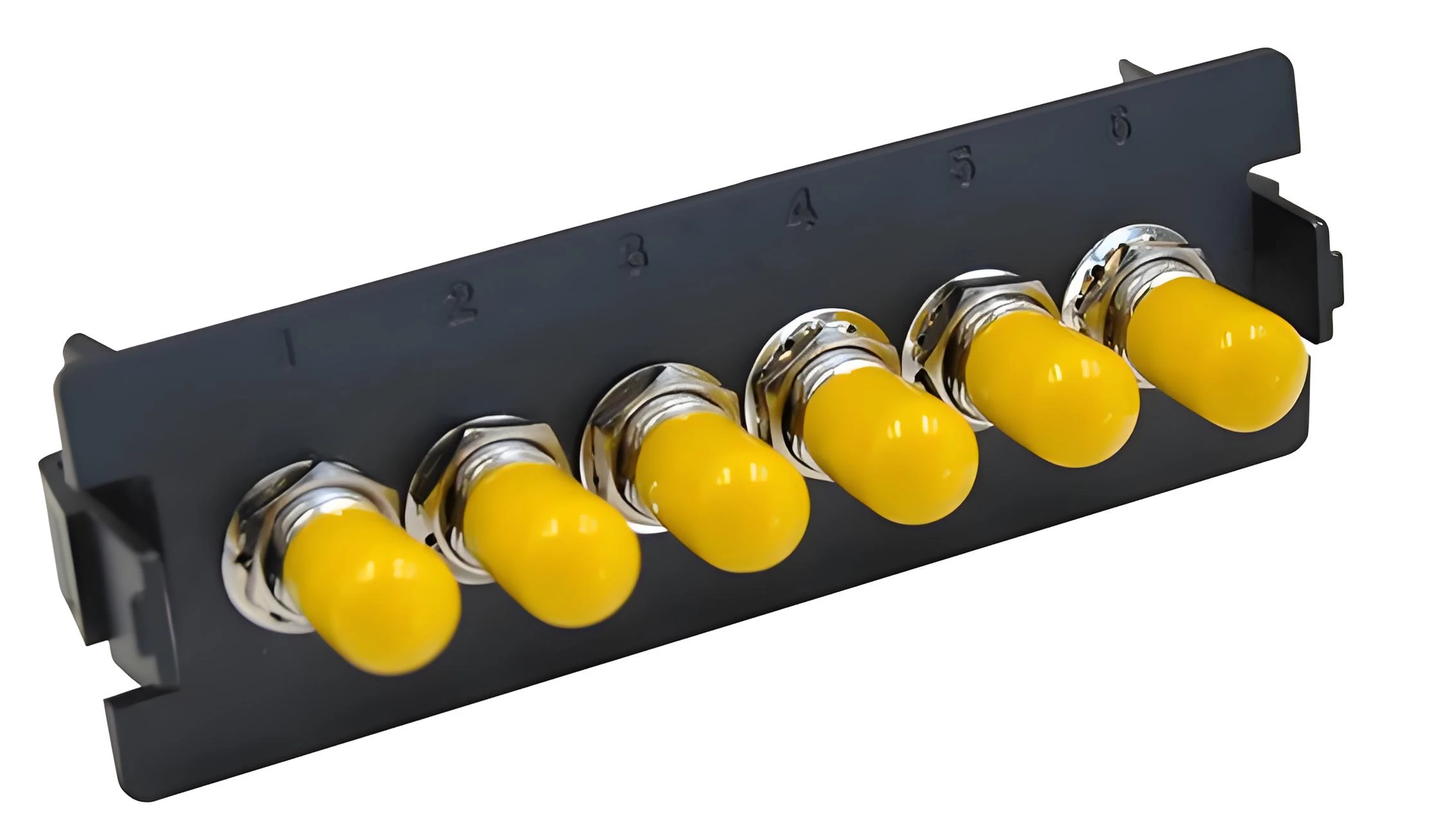

Fiber optic adapter panel is a wiring device used in fiber optic communication systems. It is usually composed of a metal shell, an adapter, a fixing frame, etc., and can be installed in places such as computer rooms, telecom operators, and data centers.
The main function of the fiber optic adapter panel is to connect the fiber optic connector plug to the optical cable to achieve fiber optic communication. It usually has multiple fiber optic interfaces and can simultaneously access multiple fiber optic terminal devices, such as fiber optic switches, fiber optic routers, and fiber optic network cards.

Fber Optic Panels Product Overview

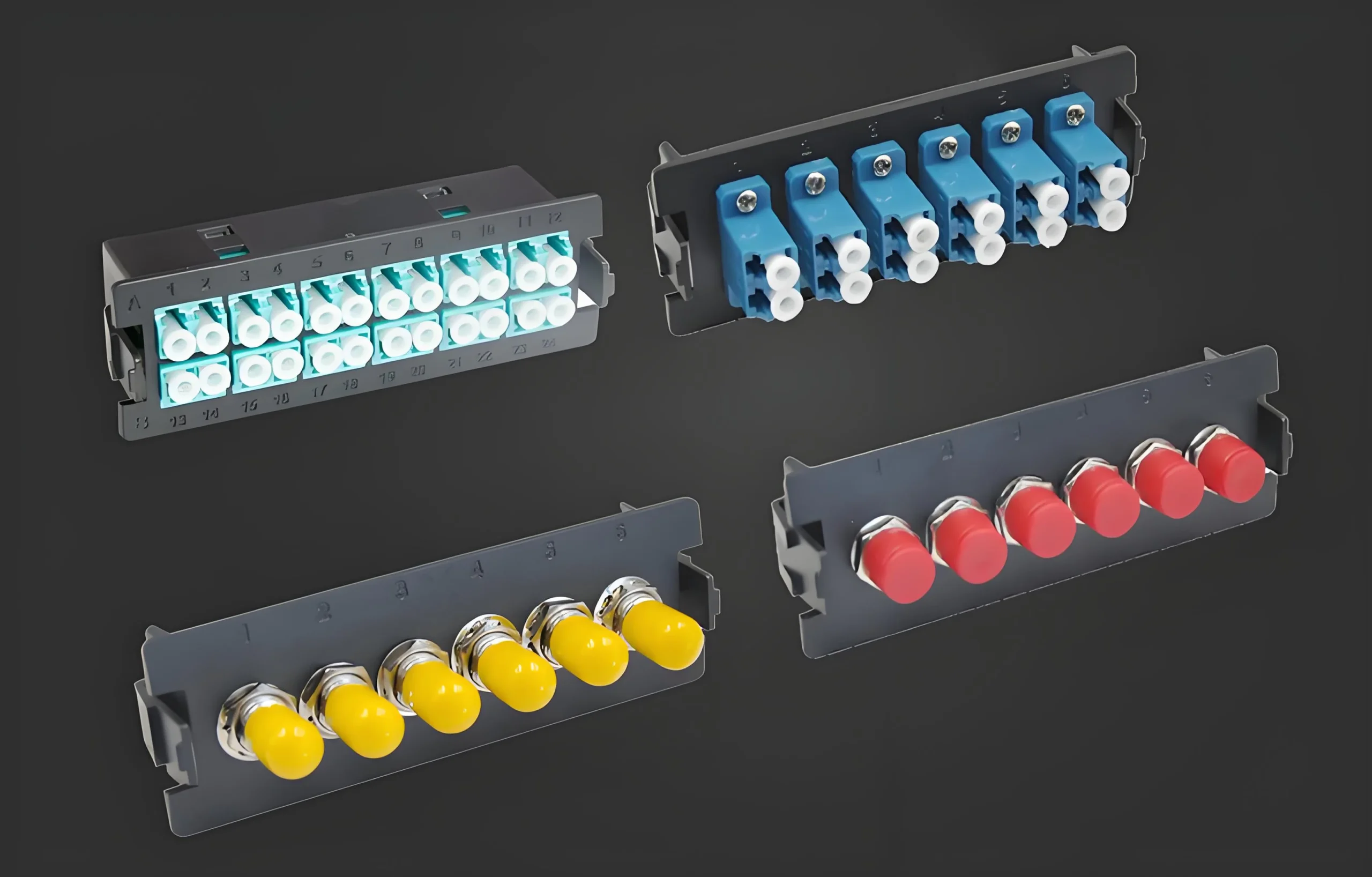

The fiber optic adapter panel is one of the key components in the fiber optic wiring system. It is used to connect different types of fiber optic jumpers to achieve the conversion and distribution of optical signals. It is usually installed in network cabinets, wall boxes or desktop ports, providing a neat and orderly way to connect multiple optical fibers for easy management and operation. The design of the fiber optic adapter panel focuses on flexibility and compatibility, and can meet the plug-in and unplug requirements of various types of fiber optic connectors, including SC, LC, ST, FC, MTRJ, MU, etc.
The fiber optic adapter panel is an important production component of fiber optic equipment that fixes the fiber optic adapter on a panel.
The fiber optic adapter panel contains adapters with different panels and different connectors. It can also be made into simplex or duplex according to actual applications. The number of adapters contained on the panel depends on the size of the panel.
The fiber optic adapter panel usually uses different types of fiber optic connectors such as SC, LC, FC, etc. to meet different fiber optic connection requirements. When using the fiber optic adapter panel, it is necessary to wire according to the actual situation and connect the fiber optic connector plug to the fiber optic interface in the adapter to achieve fiber optic communication.
The fiber optic adapter panel has the characteristics of easy installation, flexible wiring, and simple management. It can greatly improve the wiring efficiency and management efficiency of the fiber optic communication system, while also ensuring the reliability and stability of the fiber optic communication system.

Fber Optic Panels Product Features

1. Ultra-low insertion loss;
2. Good interchangeability;
3. Good repeatability;
4. Small footprint, easy to manage cables;
5. Supports customized panel size and adapters;

Fber Optic Panels Application

1. Can be used as materials for various optical fiber equipment;
2. Organize lines in optical fiber machine rooms;
3. Experimental testing;

Fber Optic Panels Main functions and effects

1. Fiber connection and conversion: The fiber adapter panel acts as a medium, allowing different types of fiber jumpers to be connected, and can be easily docked even if different connectors are used at both ends.
2. Fiber management: Provide neatly arranged interfaces to facilitate the organization and identification of fiber cables, reduce clutter, and enable network administrators to quickly locate specific lines and simplify daily operation and maintenance.
3. Save space: A properly designed adapter panel can integrate multiple ports into a small area, which is particularly suitable for environments with tight cabinet space, improving the utilization rate of the computer room.
4. Protect fiber connectors: The panel usually has a dust cover or protective door to effectively block dust and foreign matter from entering, extending the service life of the fiber connector.

Fber Optic Panels Installation and Selection Guide

When choosing a fiber optic adapter panel, the following points should be considered:
Matching requirements: Confirm the type of fiber optic connector used, purchase adapters with corresponding interfaces, and ensure compatibility.
Space constraints: According to the actual size of the installation location, choose a panel of appropriate size to meet the function and save space.
Durability and quality: Prefer panels made of metal or high-strength plastic to ensure structural stability and corrosion resistance under long-term use.
Aesthetics and standards: Follow a unified design style and installation specifications to ensure overall visual coordination and facilitate future expansion and management.

Fber Optic Panels Future Development

With the development of fiber optic communication technology, high-density and high-performance fiber optic adapter panels are becoming a new trend. For example, adapters based on new interfaces such as OSFP (Octal Small Form-factor Pluggable) or QSFP-DD (Quad Small Form-factor Pluggable Double Density) can support higher data transmission rates and adapt to the growing bandwidth demand. At the same time, the intelligent management system is combined with the fiber optic adapter to achieve real-time monitoring and fault warning, further improving the network operation efficiency.
In short, as a basic component in the fiber optic network, the selection and layout of the fiber optic adapter panel have an important impact on the stability and scalability of the entire system. Reasonable planning and selection of adapter panels can not only improve work efficiency, but also leave room for future upgrades.
