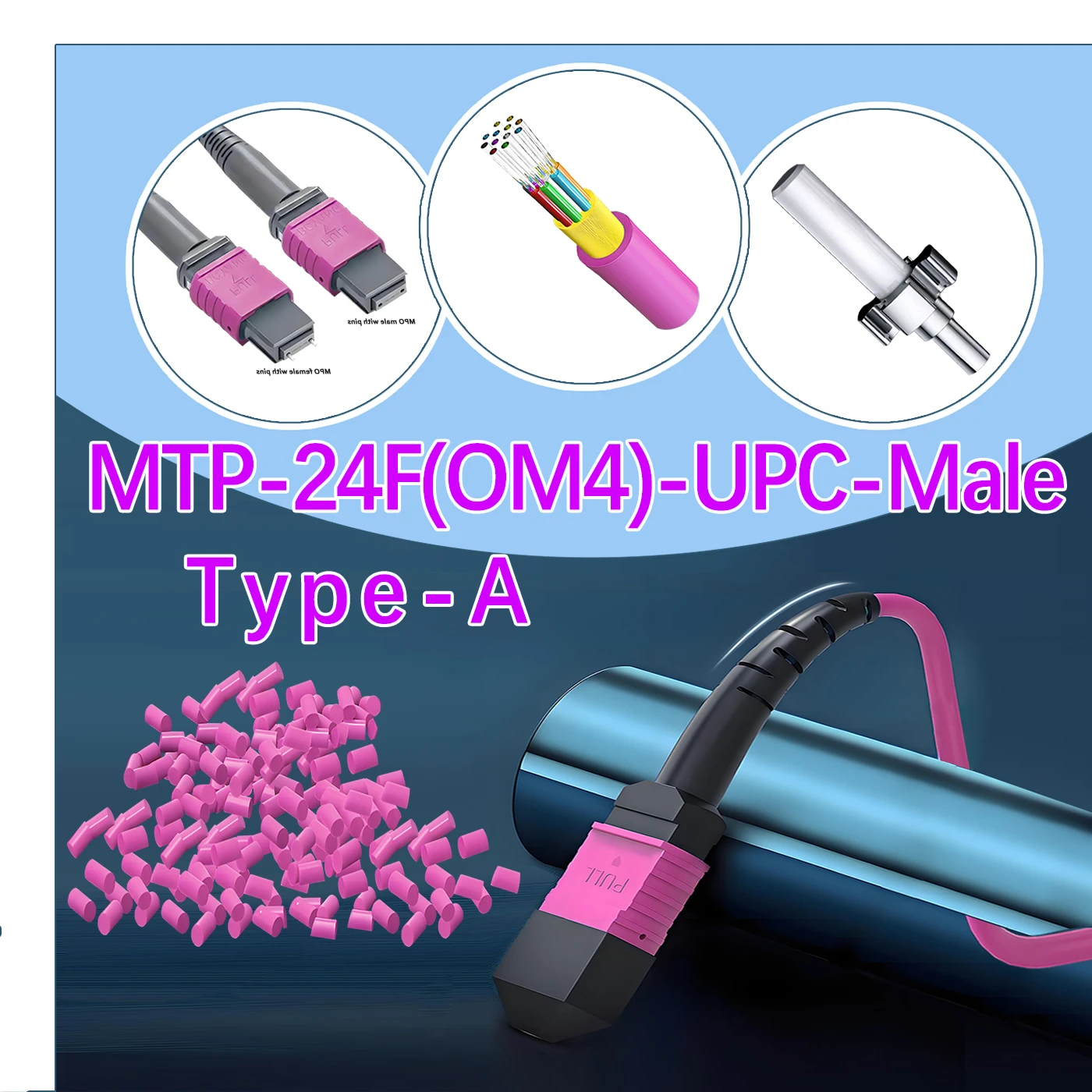

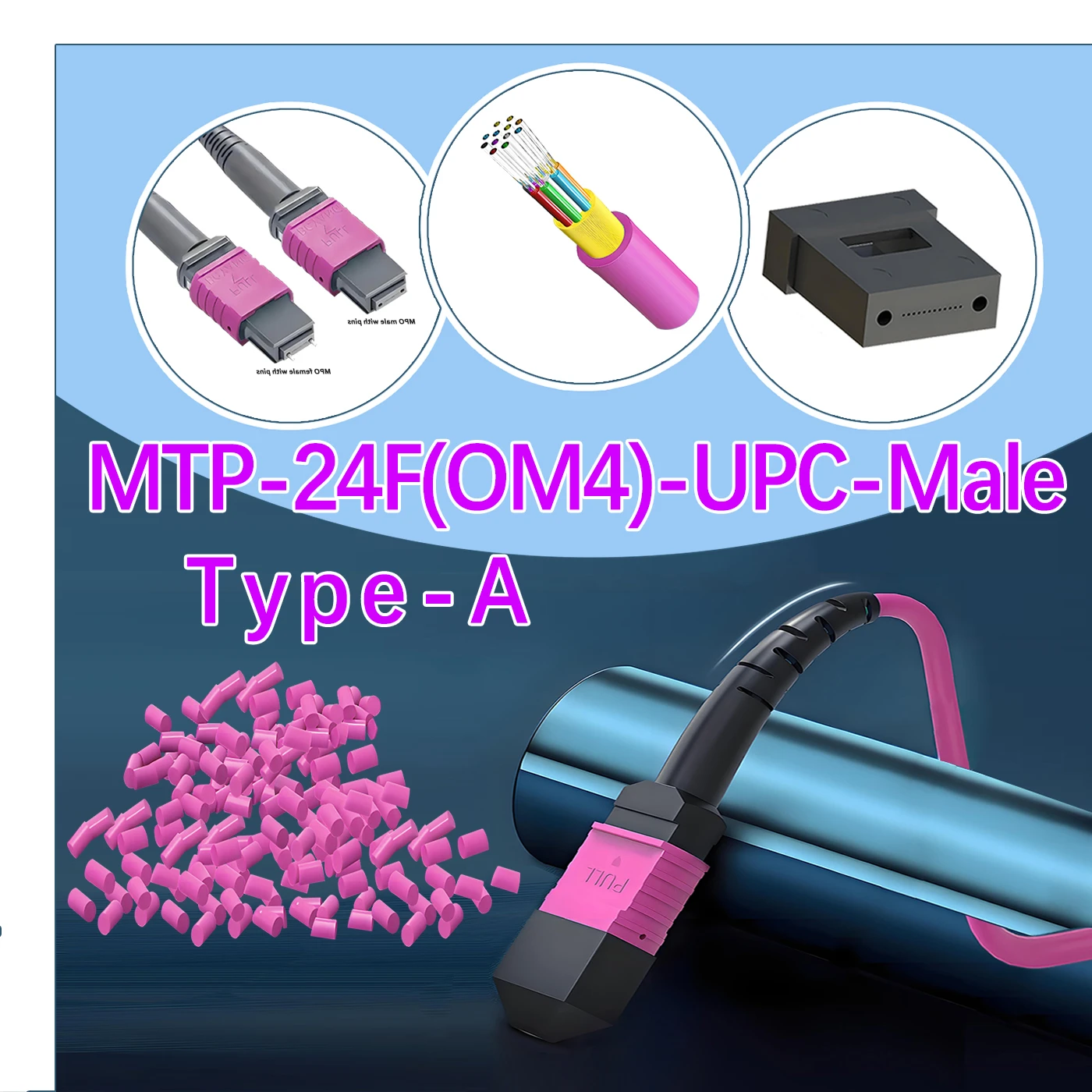

MTP 24 Jumper

MTP® jumpers support smooth transitions to greater data rates in data centers when used alongside our trunk cables. They are generally applied for patching tasks inside a cabinet. MTP® cabling provides a budget-friendly replacement for time-consuming on-site termination, designed for high-density fiber connections in data centers requiring space optimization and simplified cable organization.

MTP®-24 is perfectly suited for 20-fiber parallel multimode optical transceiver deployments, such as 100G CFP SR10 and 100G CXP SR10 link setups.

Please note: US Conec MTP® connectors fully meet MPO specifications, delivering exclusive patented features, superior accuracy, proven dependability, and notable performance advantages over typical MPO connectors.

MTP 24 Jumper Advantage Specifications

Connector A：US Conec MTP® Elite Male (with guide pins)
Connector B：US Conec MTP® Elite Male (with guide pins)
Polish Type：UPC to UPC
Fiber Mode：OM4 50/125μm
Wavelength：850/1300nm
Fiber Count：24 Fibers
Polarity：Type A
Cable Outside Diameter (OD)：3.0mm
Cable Jacket：Plenum (OFNP)
Min. Bend Radius (Optical Fiber)：7.5mm
Min. Bend Radius (Fiber Cable)：20/10D (Dynamic/Static)
Connector Durability：500 times
Tensile Strength：80/240N (Long/Short Term)
Insertion Loss：0.35dB Max (0.15dB Typ.)
Return Loss：≥20dB
Attenuation at 850nm：≤2.3dB/km
Attenuation at 1300nm：≤0.6dB/km
Operating Temperature：-10 to 60°C (14 to 140℉)
Storage Temperature：-10 to 70°C (14 to 158℉)
*MTP is a registered trademark of US Conec Ltd.

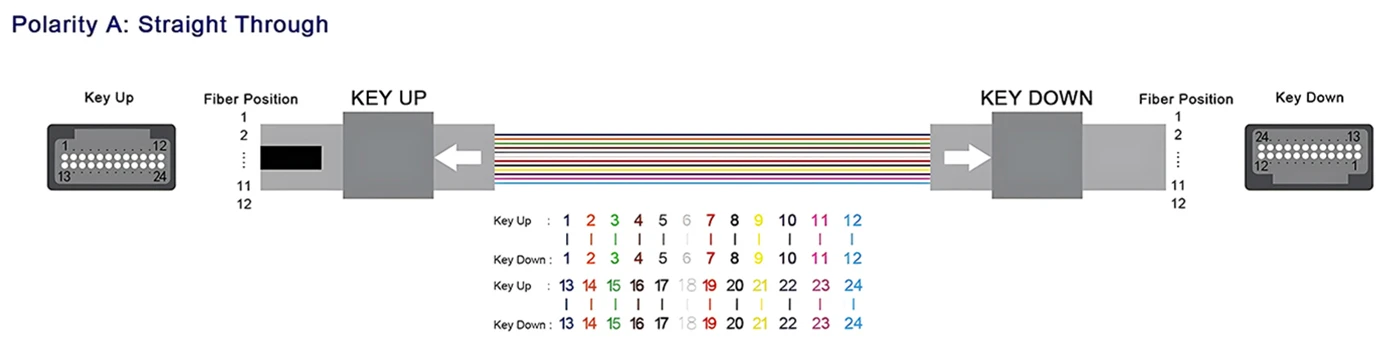

MTP Patch Cable Polarity

The MTP® 24-fiber Type A male connector is a high-density fiber optic connector designed to support ultra-fast data transmission in modern data centers. Type A polarity is known as the straight-through configuration, meaning that each fiber position on one connector aligns directly with the same fiber position on the opposite connector.
For example:
Fiber 1 ↔ Fiber 1
Fiber 2 ↔ Fiber 2
…
Fiber 24 ↔ Fiber 24
This polarity ensures simple and direct mapping of transmit (Tx) to receive (Rx) paths when used with appropriate patch cords or polarity management in structured cabling systems.
As a male connector, the plug features two guide pins to ensure precise alignment when mated with a female connector, maintaining low insertion loss and consistent optical performance.

mtp 24 jumper Key Features:

Connector type: MTP® 24-fiber male (with guide pins)
Fiber count: 24 fibers arranged in a two-row MT ferrule (12 fibers per row)
Polarity standard: Type A (straight-through, 1-to-1 mapping)
Cable jacket options: OFNR, OFNP, LSZH with standard coding colors (OS2 = yellow, OM3/OM4 = aqua/violet, OM5 = lime green)
Optical performance: Ultra-low insertion loss, optimized return loss, superior performance over standard MPO

Application
Parallel optics transmission: Supports high-speed protocols such as 100G, 200G, and 400G Ethernet
Structured cabling: Commonly used in backbone trunk cables, cassettes, and patch panels for large-scale data centers
High-density environments: Reduces cable congestion by consolidating 24 fibers into a single compact connector
Future-ready designs: Facilitates migration to higher bandwidth systems with minimal changes to infrastructure

Key Advantages
Straight-through polarity: Simplifies connectivity design with 1-to-1 fiber mapping
High-density design: Accommodates 24 fibers in a single connector, reducing space requirements
Reliable mating: Male guide pins ensure precise alignment with female connectors
Scalability: Supports evolving data rates in hyperscale and enterprise data centers

MTP 24 Jumper Advantage

• 100% use low-loss connectors
• Each MPO patch cord is fully tested for insertion loss & return loss, 100% tested, and batch goods are not sloppy
• Each line guarantees 3D geometric dimensions and end face integrity, imported equipment measures 3D, and dust-free workshops ensure cleanliness
• Affordable price, quality assurance, source manufacturers take both quality and price into consideration
• All materials have passed REACH/ROHS environmental protection requirements and are of export quality
• Adequate inventory, complete materials, and efficient production
• Customization of special specification MPO patch cords, fast delivery

MTP 24 Jumper SPIN-LEAF connection method

MTP 24 Jumper Application

High-speed interconnection in data centers

It is used for direct connection of 40G/100G optical modules, supports 400G high-speed transmission, and can improve wiring density and transmission efficiency. For example, 400G QSFP-DD DR4 optical modules can be directly connected through MPO/MTP-8 multimode fiber jumpers. ‌

High-density wiring scenarios

In the backbone wiring of data centers, MTP/MPO trunk fiber jumpers are used in conjunction with adapter modules to achieve interconnection and cross-connection between devices, saving 45% of wiring space. Branch jumpers are used to connect devices with different rates (such as 10G and 40/100G devices). ‌

100G/400G transmission expansion

Supports branch connection of 100G QSFP28 optical modules to 4 25G SFP28 optical modules, or interconnection of 100G CFP optical modules to another CFP. ‌

Fiber-to-Building Applications

It is used for fiber-to-the-building (FTTB) wiring to meet the needs of high-density fiber access.

MTP 24 Jumper Test Series

MTP 24 Jumper Polarity Test Process

‌End face cleaning: Use special equipment to remove end face contaminants to avoid affecting the test accuracy. ‌
Morphology detection: Analyze the end face microstructure through 3D imaging technology to detect surface roughness, scratches and other defects. ‌
Insertion loss test: Measure the contact loss between the fiber end face and the connector ferrule to evaluate the signal transmission quality. ‌
Polarity verification: Confirm the correspondence between the number of fiber cores and the connector guide hole to prevent communication failure caused by wrong connection. ‌

MTP 24 Jumper Test Key Indicators

Cleaning efficiency: It must reach more than 98% to ensure that there are no residual stains on the end face. ‌
‌Detection accuracy: The resolution of 3D morphology detection must be less than 1.5μ, and the insertion loss error must be controlled within 0.3dB. ‌
Test time: It takes about 10 seconds to detect a single fiber core of a 12-core MPO jumper, and the overall test takes about 2 minutes.

MTP 24 Jumper cable Test Common Problems

Pollution sensitivity: Tiny particles on the end face will cause increased loss, and non-contact cleaning methods are required to protect the end face. ‌ ‌
