MTP Fiber Optics

MTP® jumpers ensure smooth migration to higher data rates in data centers when used with our trunk cables. They are typically installed for patching connections within cabinets. MTP® cables offer a cost-efficient replacement for traditional field termination, specifically designed for high-density fiber deployments that demand space conservation and simplified cable routing.

Because MTP®-12 connectors also support MTP®-8 fiber layouts, they are well-suited for 8-fiber multimode optical transceivers, including 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 optical modules.

Please note: US Conec’s MTP® connectors fully comply with MPO standards and deliver innovative patented features, high alignment accuracy, proven stability, and superior optical performance when compared to standard MPO connectors used in similar applications.

MTP Fiber Optics Advantage Specifications

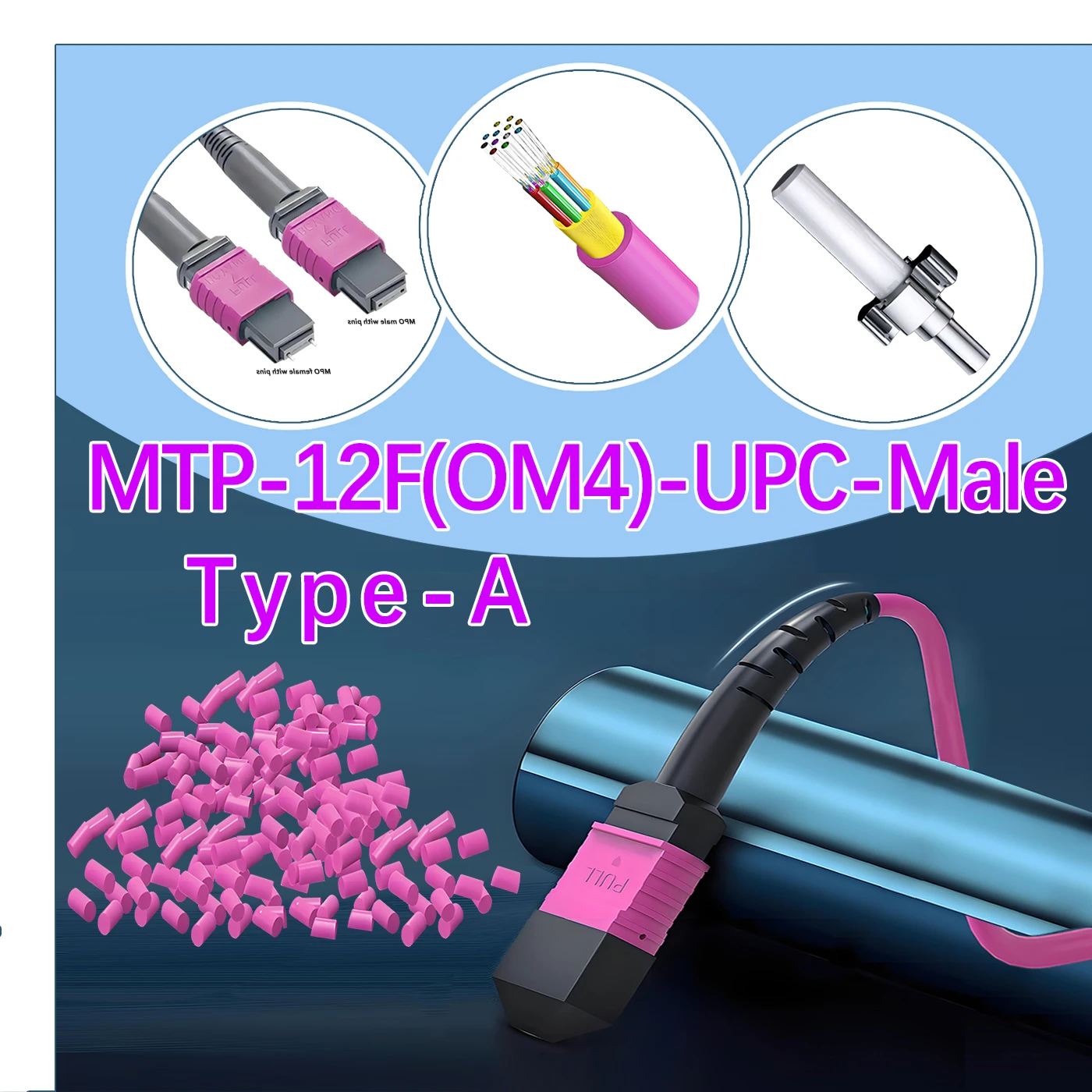

Connector A：US Conec MTP® Elite Male (with guide pins)
Connector B：US Conec MTP® Elite Male (with guide pins)
Polish Type：UPC to UPC
Fiber Mode：OM4 50/125μm
Wavelength：850/1300nm
Fiber Count：12 Fibers
Polarity：Type A
Cable Outside Diameter (OD)：3.0mm
Cable Jacket：Plenum (OFNP)
Min. Bend Radius (Optical Fiber)：7.5mm
Min. Bend Radius (Fiber Cable)：20/10D (Dynamic/Static)
Connector Durability：500 times
Tensile Strength：80/240N (Long/Short Term)
Insertion Loss：0.35dB Max (0.15dB Typ.)
Return Loss：≥20dB
Attenuation at 850nm：≤2.3dB/km
Attenuation at 1300nm：≤0.6dB/km
Operating Temperature：-10 to 60°C (14 to 140℉)
Storage Temperature：-10 to 70°C (14 to 158℉)
*MTP is a registered trademark of US Conec Ltd.

MTP Patch Cable Polarity

The MTP® 12-fiber Type A male connector is a high-density optical interconnect commonly used in structured cabling systems within data centers. Type A polarity follows a straight-through fiber mapping, meaning that each fiber at one end of the connector aligns directly with the same position at the opposite end. For example: Fiber 1 → Fiber 1, Fiber 2 → Fiber 2 … Fiber 12 → Fiber 12.
As a male connector, it is equipped with two alignment pins on the ferrule, ensuring precise core alignment when mated with female connectors. This design minimizes insertion loss and guarantees reliable optical performance.

mtp 12 jumper Key Features:

Connector type: MTP® 12-fiber male (with guide pins)
Fiber count: 12 fibers arranged in a single-row ferrule
Polarity standard: Type A (straight-through mapping)
Cable jacket options: Available in OFNR, OFNP, or LSZH, with standard fiber coding (yellow for OS2 single-mode, aqua/violet for OM3/OM4, lime green for OM5)
Enhanced MTP® design: Delivers superior optical and mechanical performance compared to standard MPO connectors

mtp 12 jumper Applications:

Backbone cabling: Connects MTP® trunk cables, cassettes, and patch panels in modular systems
High-speed transmission: Supports duplex applications and can be used in migration paths to parallel optics (40G/100G) when combined with cassettes or breakout assemblies
Structured cabling systems: Provides simple and reliable polarity management in one-to-one fiber connections
Data center environments: Suitable for high-density fiber pathways requiring efficient space usage

mtp 12 jumper Advantages:

Straight-through mapping: Simplifies fiber routing with direct one-to-one alignment
Compact and high-density: 12 fibers in one connector reduces cabling bulk
Reliable alignment: Male guide pins provide stable and accurate mating with female connectors
Scalability: Supports both duplex and parallel optics configurations for future upgrades

MTP Fiber Optics Advantage

• 100% use low-loss connectors
• Each MPO patch cord is fully tested for insertion loss & return loss, 100% tested, and batch goods are not sloppy
• Each line guarantees 3D geometric dimensions and end face integrity, imported equipment measures 3D, and dust-free workshops ensure cleanliness
• Affordable price, quality assurance, source manufacturers take both quality and price into consideration
• All materials have passed REACH/ROHS environmental protection requirements and are of export quality
• Adequate inventory, complete materials, and efficient production
• Customization of special specification MPO patch cords, fast delivery

MTP Fiber Optics SPIN-LEAF connection method

MTP Fiber Optics Application

High-speed interconnection in data centers

It is used for direct connection of 40G/100G optical modules, supports 400G high-speed transmission, and can improve wiring density and transmission efficiency. For example, 400G QSFP-DD DR4 optical modules can be directly connected through MPO/MTP-8 multimode fiber jumpers. ‌

High-density wiring scenarios

In the backbone wiring of data centers, MTP/MPO trunk fiber jumpers are used in conjunction with adapter modules to achieve interconnection and cross-connection between devices, saving 45% of wiring space. Branch jumpers are used to connect devices with different rates (such as 10G and 40/100G devices). ‌

100G/400G transmission expansion

Supports branch connection of 100G QSFP28 optical modules to 4 25G SFP28 optical modules, or interconnection of 100G CFP optical modules to another CFP. ‌

Fiber-to-Building Applications

It is used for fiber-to-the-building (FTTB) wiring to meet the needs of high-density fiber access.

MTP Fiber Optics Test Series

MTP Fiber Optics Polarity Test Process

‌End face cleaning: Use special equipment to remove end face contaminants to avoid affecting the test accuracy. ‌
Morphology detection: Analyze the end face microstructure through 3D imaging technology to detect surface roughness, scratches and other defects. ‌
Insertion loss test: Measure the contact loss between the fiber end face and the connector ferrule to evaluate the signal transmission quality. ‌
Polarity verification: Confirm the correspondence between the number of fiber cores and the connector guide hole to prevent communication failure caused by wrong connection. ‌

MTP Fiber Optics Test Key Indicators

Cleaning efficiency: It must reach more than 98% to ensure that there are no residual stains on the end face. ‌
‌Detection accuracy: The resolution of 3D morphology detection must be less than 1.5μ, and the insertion loss error must be controlled within 0.3dB. ‌
Test time: It takes about 10 seconds to detect a single fiber core of a 12-core MPO jumper, and the overall test takes about 2 minutes.

MTP Fiber Optics Test Common Problems

Pollution sensitivity: Tiny particles on the end face will cause increased loss, and non-contact cleaning methods are required to protect the end face. ‌ ‌
